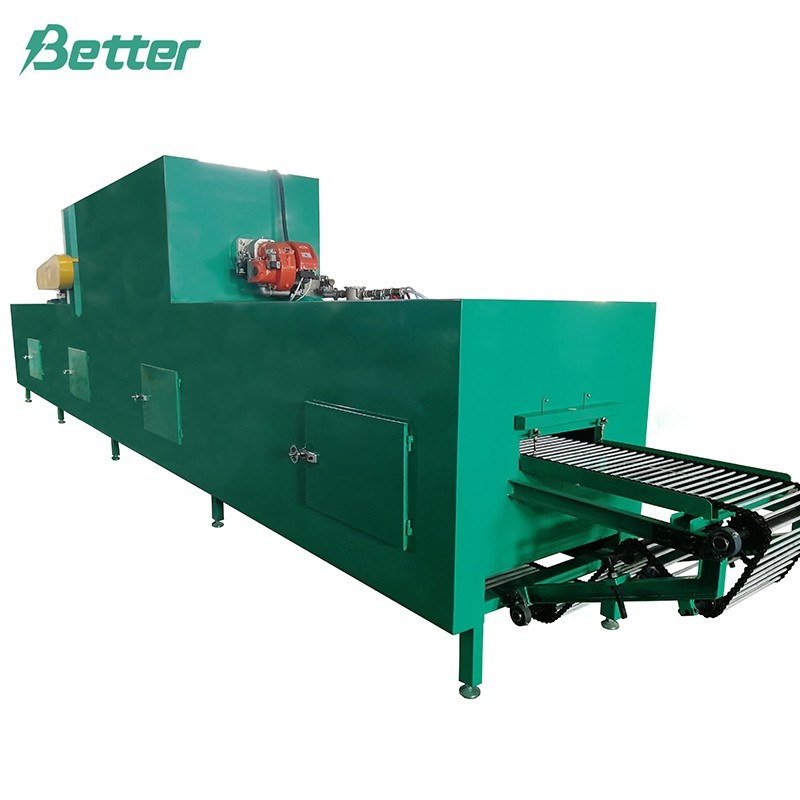

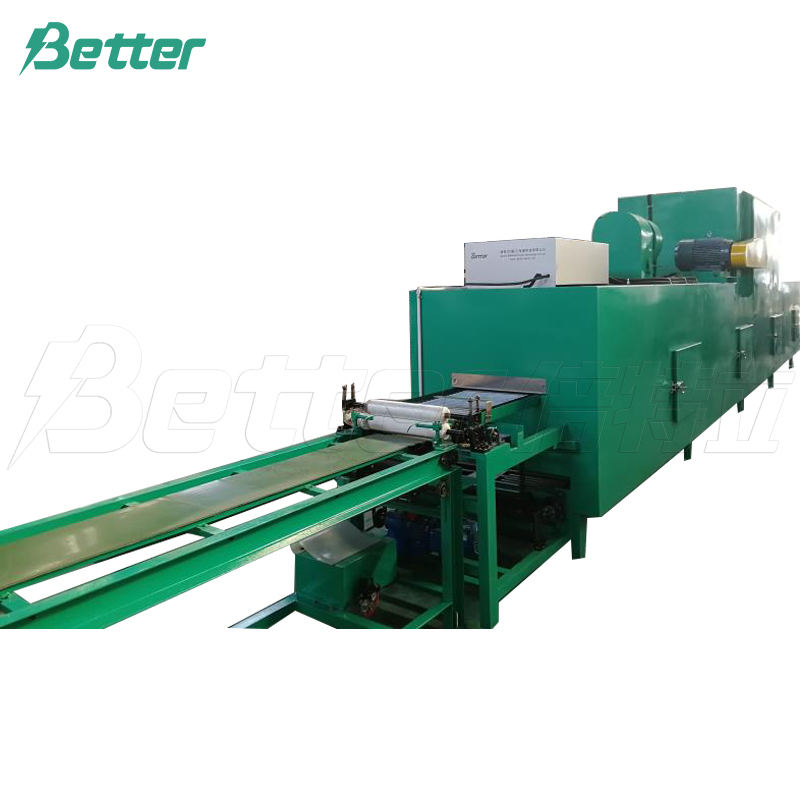

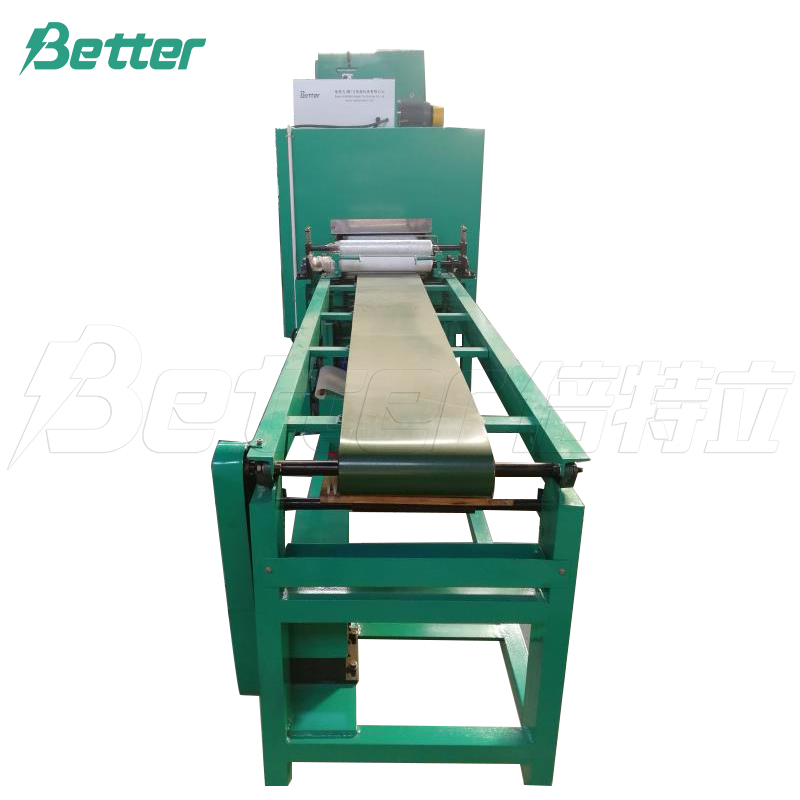

Plate Flash Drying Oven

Description

Gas type Flash drying oven is a special equipment for plate production line, using gas for heating, with the unique design of the hot air circulation technology of the grid flash rapid drying after pasting, the plate is not easy to crack, less plate internal moisture loss, It save more cost, compare with traditional electric heating mode, which is the battery manufacturers ideal.

The FDO has the advantages of reasonable structure, convenient operation, good maintenance and high production efficiency. Working principle: through the high temperature blower and the laying of the upper and lower air channels for both sides of the plate, we should make full use of the hot air internal circulation and have high thermal utilization rate. The crawler conveyor chain grate and speed control are applied to the flash drying of all kinds of pasted grid.

Working Principle

By using the high temperature air blower and upper and lower air channel, the heat utilization is high by making full use of hot air internal circulation; it adopts crawler type conveying chain to transmit the plates with speed control, applicable for all sizes of plates.

Technical parameter:

1. Transmission speed of the 316L conveying chain: 12~25m/min

2. Production Capacity: 130 panels/min

3. Adjustable temperature of the drying oven: room temperature~180℃

4. Electric power parameter:

   4.1 reduction gear of the conveying chain main transmission motor (1pc): 0.75KW

   4.2 dehumidification blower (1pc): 2.2KW

   4.3 hot circulation blower (1pc): 11KW

5. Overall dimension: L*W*H=11700*1150*2500mm

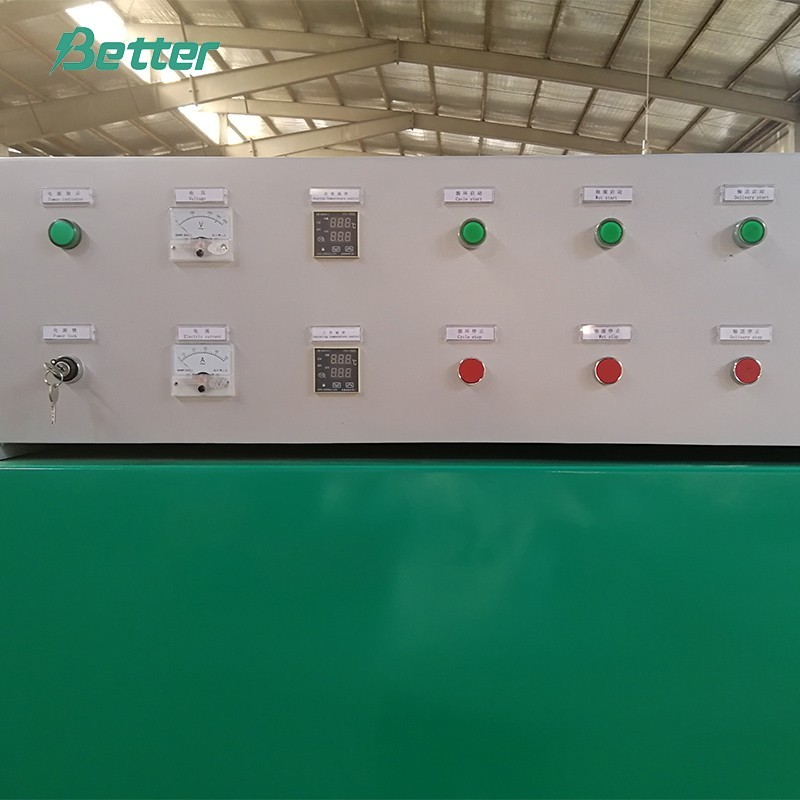

6. Main composition: drier =1pc, electric control cabinet =1pc, plate stacker=1pc

7. Weight about 4500KG

Option

Different kinds of heating method are available, e.g. electrical heating, natural gas heating, LPG heating, etc.
