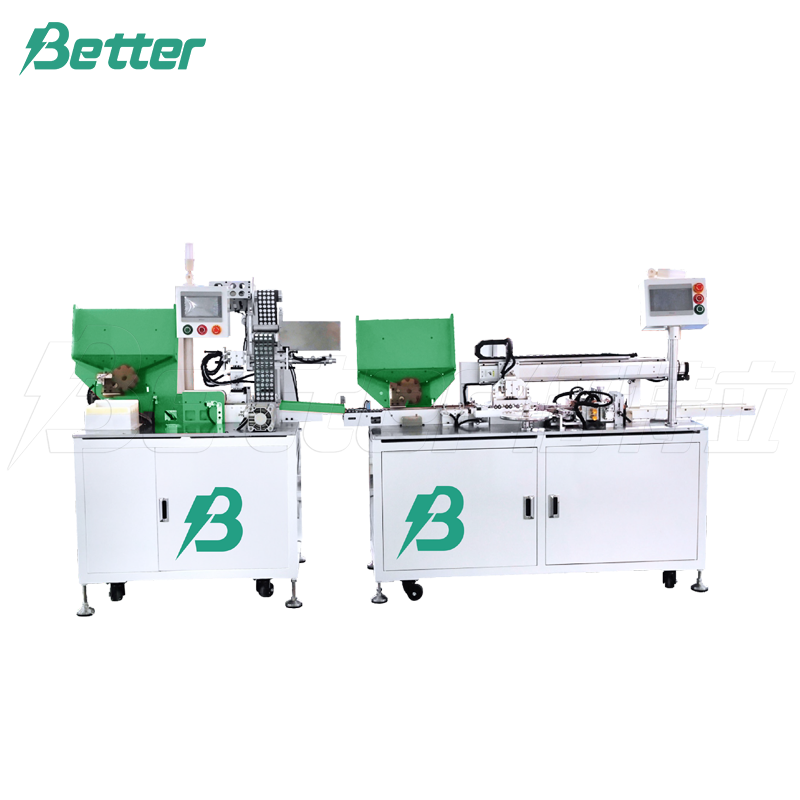

Single row multi cell series parallel multifunctional spot welding machine
Single Row Multi-Cell Series-Parallel Multifunctional Spot Welding Machine. Enables efficient series/parallel welding for 18650 battery packs in mobile power applications at >1800pcs/h speed, with precise ±0.2mm accuracy, voltage/IR detection, flip functionality, and auto alarms for reliable, high-yield production.
- Information
Function Features
1.Suitable for mobile power welding with flip function.
2.The detection function of voltage internal resistance can be closed,and it can be selected.
3.When the core is assembled at any time, the spotwelding of the positive and negative electrodes of the battery will save time and cost.
4.The device is easy to de bug, and can store 10 sets of parameters according to different battery combinationsandprocessrequirements.
5.Automaticfaultalarm,clear thet rouble according to the hint,easy to understand.
Technical Parameter
Model：WPM-300
Work power：220V/50Hz
Total power：2.4KW
Working pressure：0.4-0.6MPa
Use ambient temperature：0-50℃
Use relative humidity：15-90%
Cell model：18650
Battery combination form：10 battery combination
Welding speed：＞1800PCS/h
Nickel sheet thickness：0.08-0.12mm Optional welder for increased weld thickness
Thickness of insulation gasket：0.25-0.5mm
Cell model change time：≤15min
Welding position accuracy of nickel sheet：≤0.2mm
