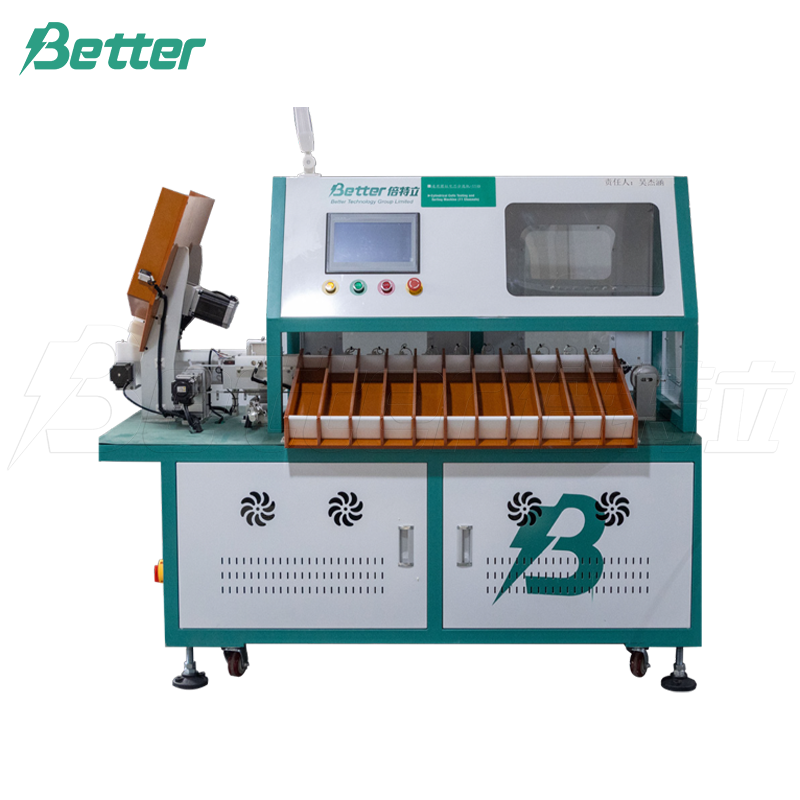

Universal cylindrical battery eleven stage sorting machine
Universal Cylindrical Battery Eleven-Stage Sorting Machine. Automatically sorts 18650/21700+ cells by voltage and IR into 11 grades at 3500pcs/h with ultra-high ±0.025% accuracy, barcode scanning, and database management for precise, efficient battery grading.
- Information
Function Features
1.According to the set parameters, the battery with differentinternal resistance and voltage can be sorted to different gearsaccurately.
2.The equipment adopts material box feeding, the manipulatorautomatically divides the material and manually receives thematerial.
3.It can betestedandequippedwith 4000 cores perhour.
4.The core of the test realizes the system database 4.managementmode,and keeps data foralong time.
5.The bar code scanning and reading function can be selected tofacilitatetheretrospective comparison ofthe core parameters.
Scope of application
It is mainly applicable to battery specifications of 18650 cores and customizable 26650, 32650, 21700 or other electric core models.
Technical Parameter
Model: WPM-1100
Supply voltage: 220V-50Hz
Air Pressure: 0.4~0.6 MPa
Power: 0.5KW
Weight: 260KG
Efficiency: 3500PCS/H
IR Accuracy: ±0.025%R.D.±6dgt
Voltage Accuracy: ±0.025%R.D.±6dgt
Test mode: 11 channels
Machine dimensions: 16008001700mm
