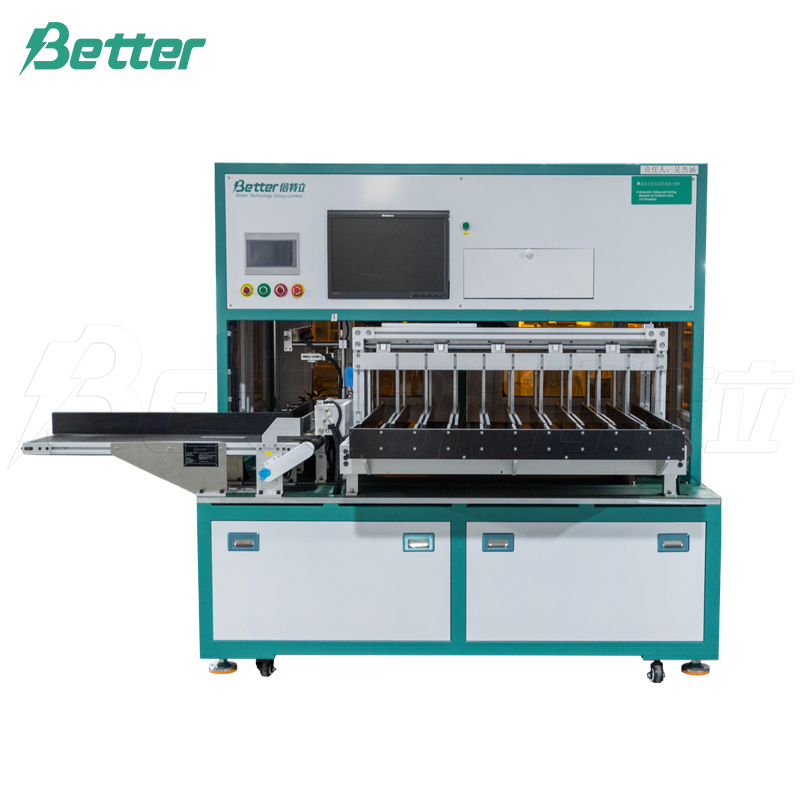

10 channel square battery sorting machine
10-Channel Square Battery Sorting Machine. Automates prismatic cell grading by voltage and IR at 8-12 PPM with 0.5% accuracy, 10 channels for efficient OK/NG sorting, barcode scanning, and data storage. Ensures precise, high-throughput quality control for reliable battery production.
- Information
Function Features
The Ten Channel Prismatic Cell Sorting Machine is an automated equipment designed for sorting various types of prismatic batteries. The device utilizes an internal resistance tester to measure the internal pressure and internal resistance of prismatic cells. Based on parameters set in the upper computer software, it tests each cell's characteristics and transfers cells of different grades to corresponding channels according to the evaluation results, thereby achieving automated sorting of battery products. The equipment is equipped with barcode scanning and data storage capabilities.
Physical dimension
Technical Parameter
Weight：About 400Kg
Equipment size：L*W*H: 1950mm*1300mm*1800mm
Power supply：AC 220V 50Hz
Power：3.6KW, 220V AC input, 50Hz/60HZ
Work environment requirements：Temp: 0℃~50℃, no pollution and electromagnetic interference
Air source requirements：0.5~1.0MPa air source, 0.5-0.7MPa compressed air
Channels：10 channels (9 OK, 1 NG)
Internal resistance detection accuracy：Range: 0-60mΩ; Accuracy: 0.5% rdg; Resolution: 0.1 mΩ
Voltage measurement accuracy：Range: 0-20mΩ; Basic accuracy: ±0.015% rdg; Resolution: 0.1 mV
Production rate：8-12PPM
Suitable for battery model：Prismatic cell L:60-260mm/T:20-60mm/H:100-220mm
