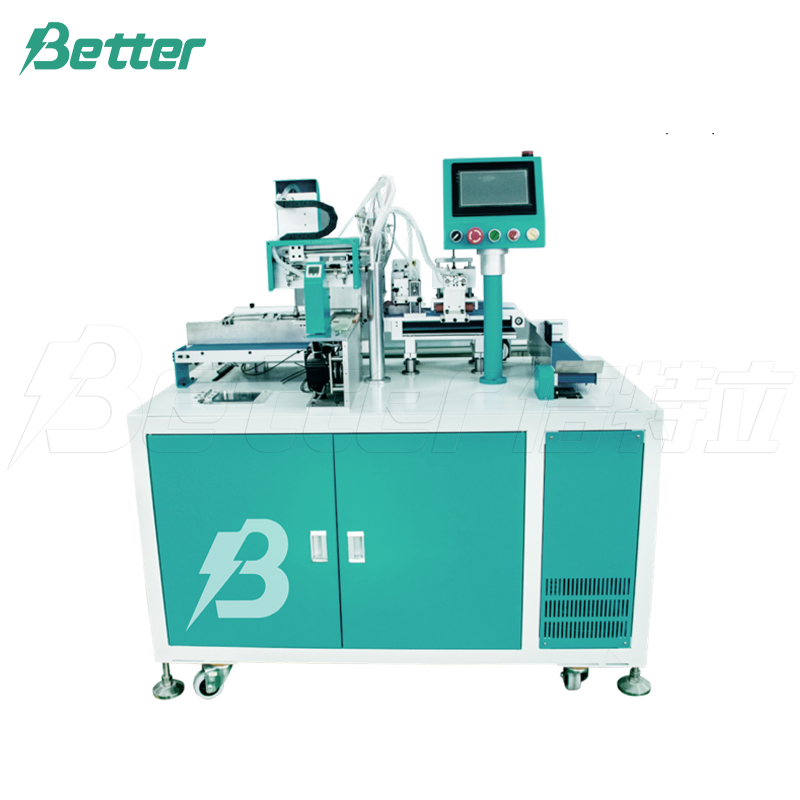

Mobile battery automatic testing and packing machine
Mobile Battery Automatic Testing and Packing Machine. Automates high-volume testing and packaging for mobile power banks at 1800-2000pcs/h. Ensures precise handling (0.01mm accuracy), easy PLC operation, fault alarms, and minimal maintenance for superior efficiency and quality control.
- Information
Function Features
1.High performance quick detection packaging, about2000 batteries perhour.
2.Full automatic feeding detection, packaging, highefficiency,equipmentwithoutspecial care.
3.It shows the running state and function parameters ofthemachine.ltiseasyto operate and easyto understand.
4.PLC programming control system, simple man-machineinterface,faultalarm prompt.
Technical Parameter
Model：WPM-LD1000
Supply voltage：220VAC±10% 50Hz
Air Pressure：0.4-0.6MPa
Power：0.8KW
Weight：About 200KG
Efficiency：1800-2000pcs/H
Movement accuracy：0.01mm
Control system：PLC+HMI
Programming interface：PLC touchscreen (Chinese)
Machine dimensions：1140*980*1380mm
Simple Display
