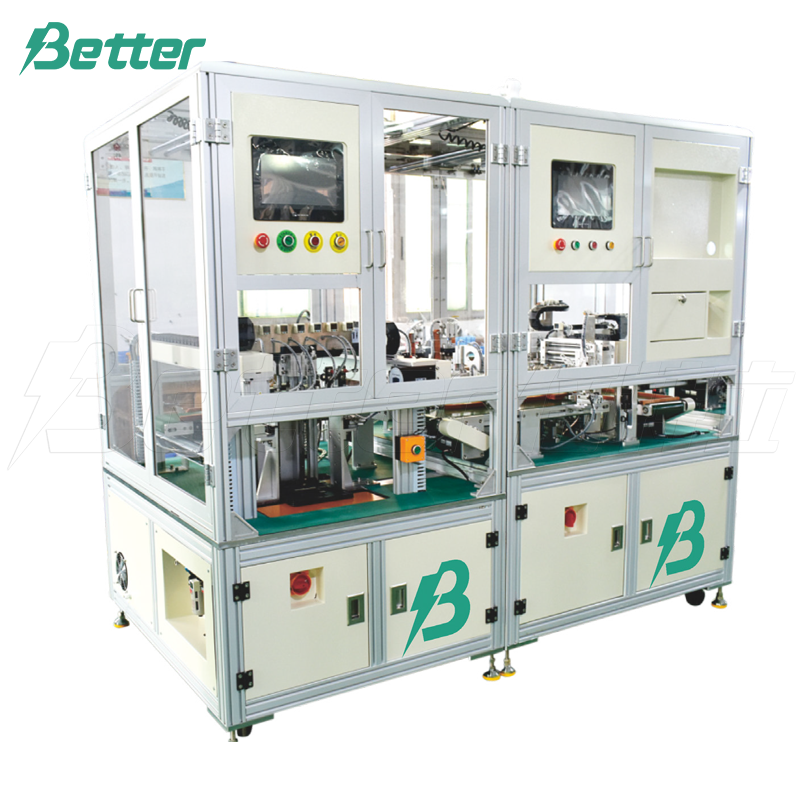

Automatic feeding multi-functional machine

Automatic feeding multi-functional machine is an automatic equipment for polymer battery processing, which can realize the functions of automatic battery feeding, pole lug prepressure, battery voltage, internal resistance testing CCD detection, pole lug center distance, scanning data upload (optional), pole lug cutting, pole lug shaping, and bad product screening.

1, cell automatic feeding (TRAY tray automatic collection)

2, cell turn over (optional)

3, enter the multifunctional machine

4, pole ear once shaping

5, voltage measurement internal resistance (OCV)

6, CCD pole ear detection (optional)

7, pole ear cutting

8, pole ear twice shaping

9, sorting and discharging (scanning code, data binding upload an optional)

Battery dimensions (mm)：L40-140 Tab included W35-90 T3-10

Battery tray dimensions：L280-420 W220-350 Stacking H≤250

Cutter life：>400 thousand times

Tab cutting accuracy：±0.1

Equipment operating rate：≥98%

Yield rate：≥99%

Air source pressure：0.5MPa

Total power：3KW

Ambient temp.：0-50℃

Power supply voltage：220V 50Hz

Production capacity：≥1000PCS/H

Machine dimensions LWH (mm)：2200*1200*1900mm

Functional characteristics

1. Auto-feeding from tray to conveyor, saving labor work

2. Tab pre-pressing, improving cutting accuracy & reducing loss due to poor material

3. Voltage/resistance testing

4. Machine skips tab-cutting for voltage/resistance-defects to allow supplier returns and loss reduction

5. Anode/cathode tabs cut separately with right-angle/rounded-edge cutting options

6. Fool-proof cutting station ensures cell safety

7. Full-range vacuum monitoring

8. Anti-static belt protects batteries

9. User-friendly intuitive operation
