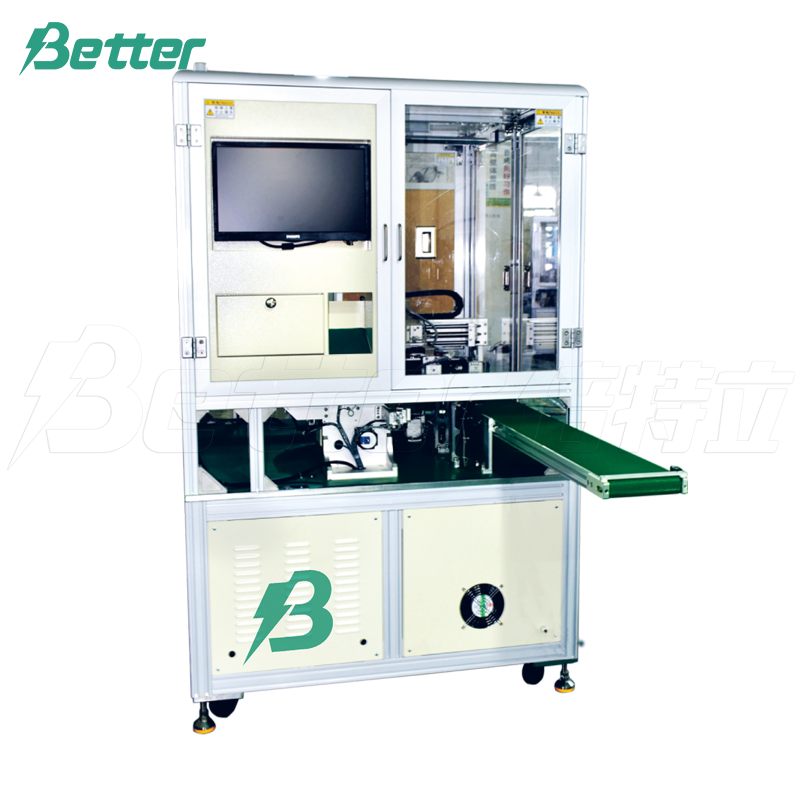

Tape Winding Machine
Tape Winding Machine for polymer battery head wrapping. Automates precise brown tape winding at ≥1000pcs/h with ±0.25mm accuracy, ≥99% yield, customizable lengths, anti-static protection, and easy operation for neat, reliable results.
- Information
Introduction of use
Designed for winding one or more circles of brown tape on the cells' head.
Technological process
Cell feeding & positioning
First bending
Second bending
Forming
Discharge
Technical Parameter
Battery dimensions：L:40-120 W:35-90 T:3-10
Taping accuracy：±0.25
Tape thickness：0.05-0.2
Equipment operating rate：≥98%
Yield rate：≥99%
Air source pressure：0.5MPa
Total power：2KW
Ambient temp.：0-50℃
Power supply voltage：220V 50Hz
Production capacity：≥1000PCS/H
Machine dimensions LWH (mm)：1200*1200*1900mm
Functional characteristics
Tape winding machine
Designed for winding one or more circles of brown tape on the cells’ head.
80mm-200mm Adjustable tape winding length (about 80mm-200mm)
Tape size and length is customizable according to different cell processes
Neat and firm taping performance
Full-range vacuum monitoring
Anti-static belt protects batteries
User-friendly intuitive operation
