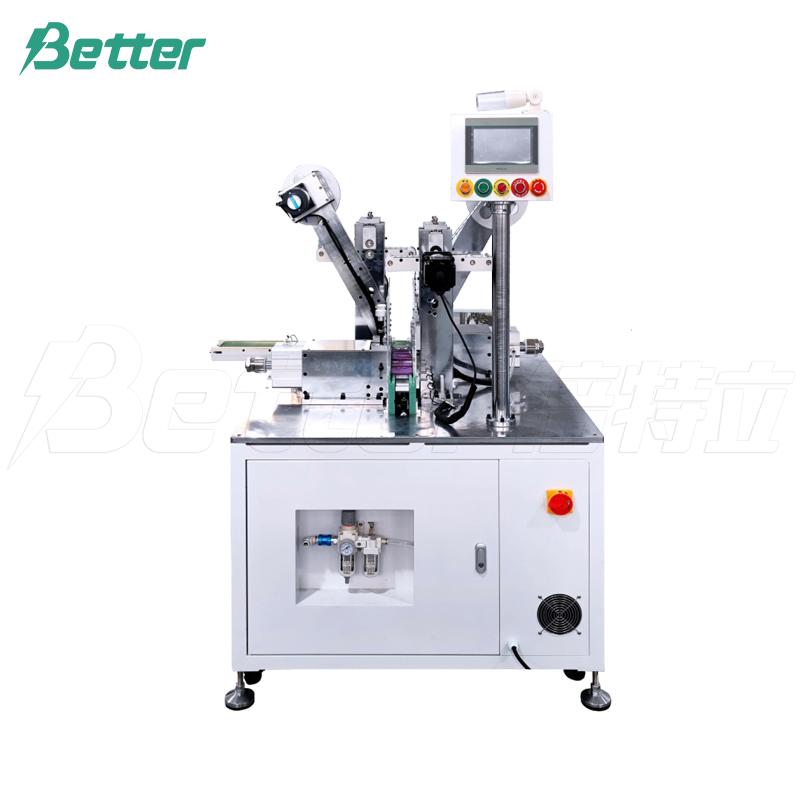

18650 double veneer mat machine
18650 Double Veneer Mat Machine. Automates precise insulating pad application on battery terminals for enhanced safety and efficiency. Delivers 1500pcs/h speed, single/double patching, fault alarms, and easy operation to minimize labor while ensuring consistent, high-quality results in battery production.
- Information
Function Description
The machine automatically applies insulating paper or PVC pads to the terminals of single or double 18650 power cells.
It supports manual loading and ensures precise, secure, and neat application. With a built-in fault alarm system, the machine automatically discharges materials after troubleshooting, allowing operators to collect finished products manually.
This system offers a user-friendly, efficient automation solution for end pad application and sorting, reducing labor and simplifying operation.
Performance characteristics
Supports taping for both double-cell arrays and single cells. Ensures precise application, neat appearance, and secure adhesion.
Equipped with a fault alarm system for easy troubleshooting. Simple to commission and operate, with user-friendly guidance.
Delivers high efficiency, reduces labor, and ensures consistent product quality with uniform appearance.
Technical Parameter
Device Name：Double cells insulation lamination machine
Applicable batteries：Cylindrical cells
Production efficiency：1500PCS/H
Using air pressure：0.4-0.6Mpa
Input power supply：Single phase 220V/50Hz
Equipment power：3KW
External dimensions：L1200*W1000*H1600
Overall weight：260KG
