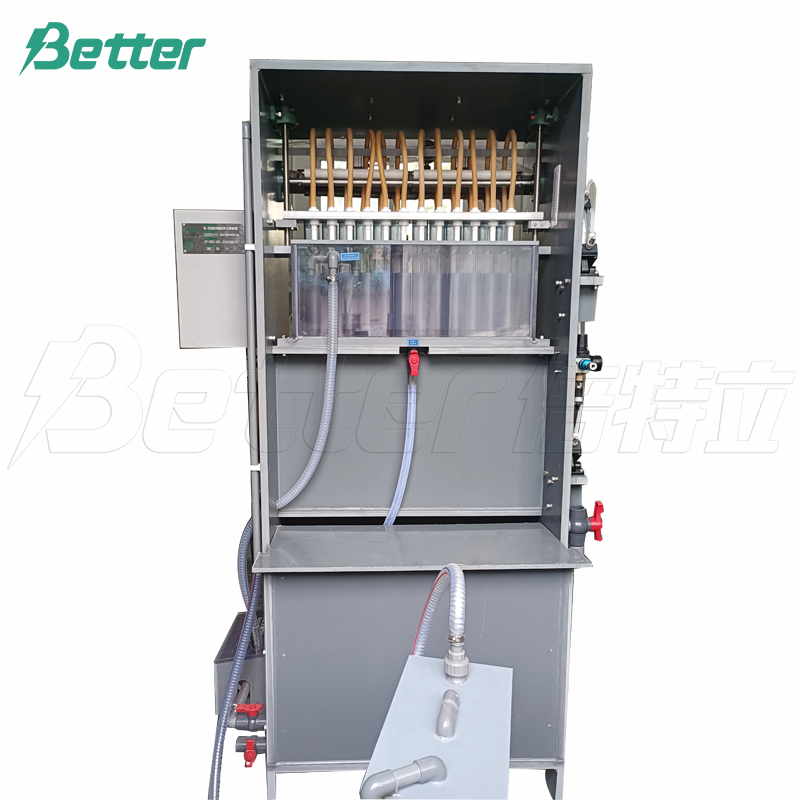

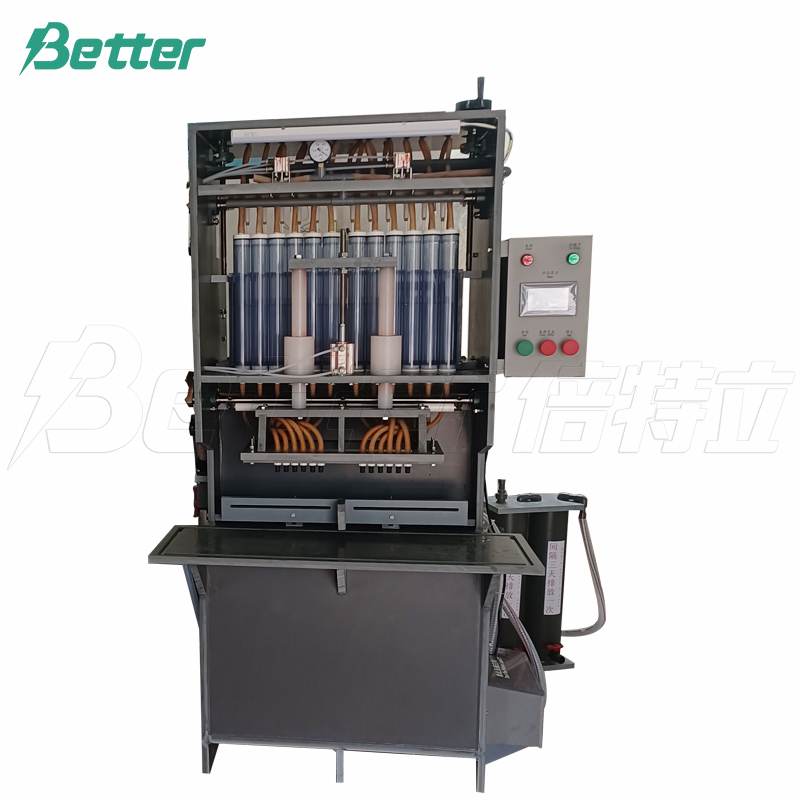

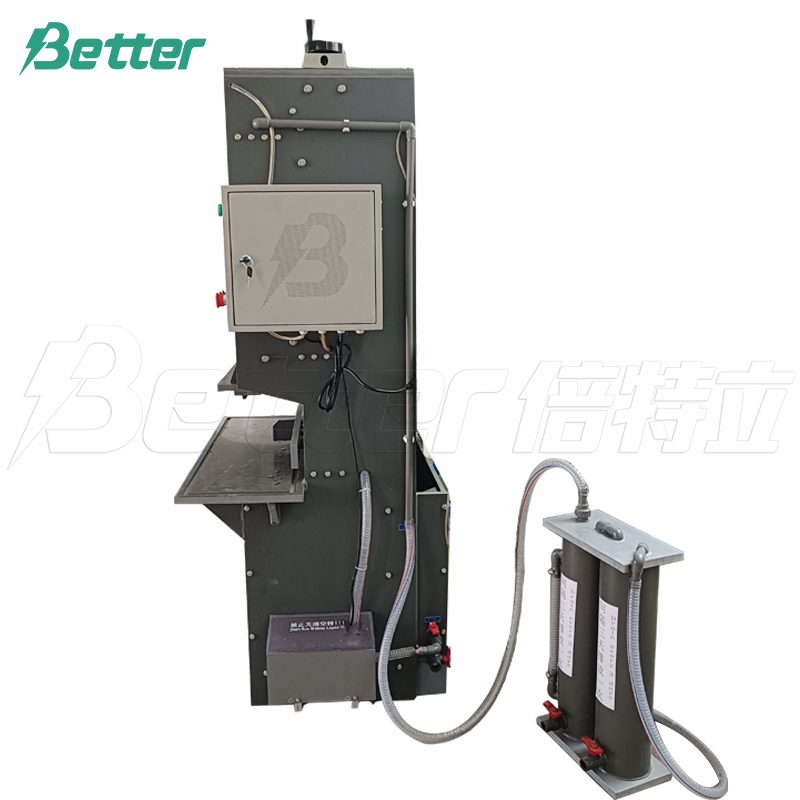

battery Vacuum acid filling machine for lead acid battery

battery Vacuum acid filling machine for lead acid battery

Application:

Small size lead-acid batteries quantitative acid filling, particularly for electric vehicle(bicycle) batteries .

Feature

1 Microprocessor controlled technology, touch screen operation interface（HMI)；

2 Pneumatic hydraulic technology, equipment running smoothly and fast, good repeatability

3 Precision manufacturing technology with high accuracy；

4 Acid proof, long-term use；

5 Quantitative cup and vacuum ；

6 High-class VC，up-down structure，side clamp, manual acid adjustment, vacuum low pressure alarm

7 With water-cooled vacuum filtration system, two sets filling jigs supplied with the machine.

Function

1 Amount of acid , filling times, vacuuming times can be arbitrarily set;

2 Various time parameters can be set according to the user's process.

3 Automatic counting.

Parameter

1 Power source ：220V/50Hz(Transformer for motor available according to local voltage)

2 Gas source: 0.4～0.6 Mpa;

3 Precision of single tube acid filling: ≤ ±0.4mL;

4 18 tubes acid filling consistency accuracy: ≤ ±0.4mL;

5 Air consumption:0.01m³/min

For more product details, please contact us immediately.
