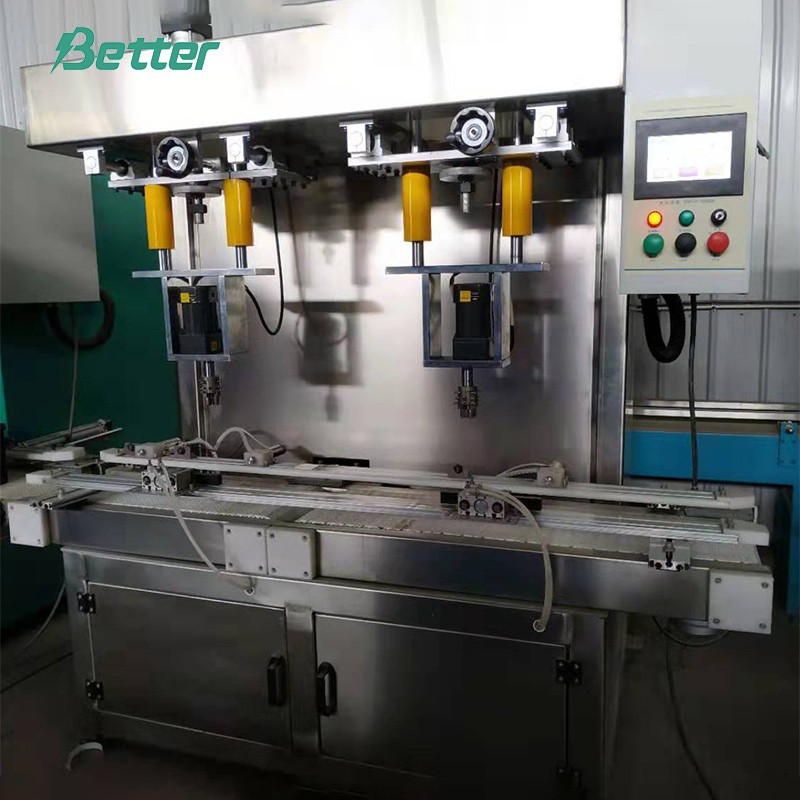

Battery Pole Brushing Machine

Battery Pole Brushing Machine applies to brushing the battery pole, so that the pole is smooth and clean.

  • Information

Automatic Battery Pole Brushing Machine

1. Application: Used for brushing the round shape poles for 36Ah~200Ah batteries

2. Operation: The battery will be positioned automatically by the photoelectric sensor; the brush mold will lower to brush the positive pole and negative pole.

3. Feature: The machine has two stations; it can automatically finish the terminals brushing, which replaces manual operation to effectively improve the production capacity.

4. Power Source: AC380V, 50HZ, 1KW;

5. Air Source: 0.1m3/min, 0.6MPa

6. Weight: 750Kg

7. Dimension (L*W*H): 2000×11200×1900mm

8. Main Configuration: 316L stainless steel, Mitsubishi PLC/ HMI, frequency converter, AirTAC pneumatic components, Schneider low-voltage apparatus.

9. Production Capacity: 3~4pcs batteries/ min
