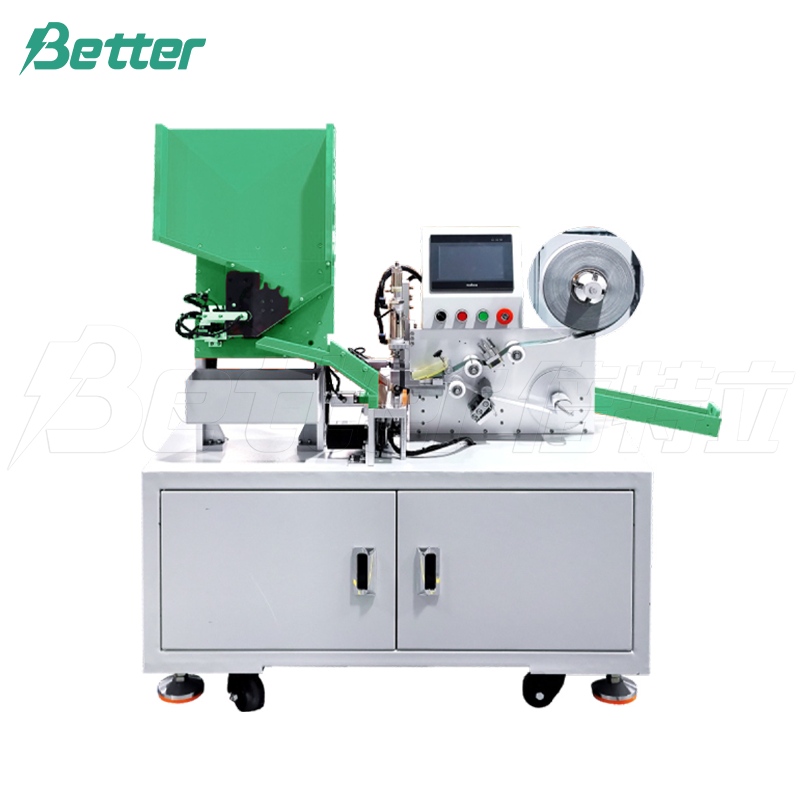

Side pasting of cylindrical battery with barley paper machine
The cylindrical battery side pasting barley paper machine is a device used for pasting barley paper on the side of a single cylindrical battery cell. It adopts high-precision stepper motor positioning and transmission, and is bonded in two ways: vertical pressing and side pressing. It has the characteristics of firm adhesion, high accuracy, and fast speed.
- Information
Function Description
This machine applies insulating paper to the side of cylindrical cells. It uses high-precision stepper motors for accurate positioning and conveying, offering both vertical and lateral pressing for secure adhesion, with advantages of high efficiency and high working speed.
Production rate: 3,000 cells per hour. Simple structure and outstanding stability.
This equipment represents the most cost-effective solution currently available on the market.
Process flow
Operate and set parameters through software on the human-machine interface, and the PLC automaticaly completes thefollowing functions: manual installationfillthe battery into the silo -> Drop the battery into the conveying device through theoading wheel to transport the battery -> Automatic paper puling and cutting at the sticker station -> HangingVerticaldownward pressure atthe direct pressing station -> Side downward pressure at the side pressing station again -> Belt conveyoimoves out of the battery, Eauipment configuration sound and lightAlarm, with material shortage alam, fault alarm, etc, TheoDerating parameters can be set according to the actual requirements of the customer.
Technical Parameter
Working voltage：Single phase
Total power：650W
Using air pressure：0.4-0.6Mpa
Battery specifications：18500/18650/21700
Insulation paper width：5-10mm
Operating efficiency：≥45PPM
Equipment weight：About 100kg
External dimensions：L1070*W600*H1376
Framework materials：Thick cold-rolled steel
Operation configuration：HMI
