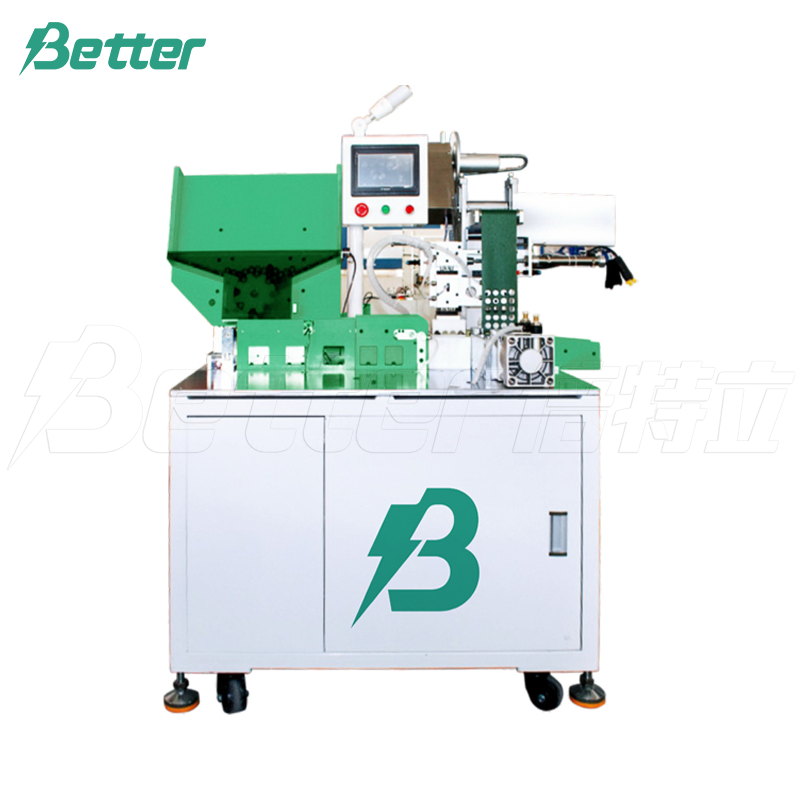

18650 battery automatic veneer pad machine

Automatic 18650/21700 Battery Insulation Pad Pasting Machine. Delivers high-speed 4000pcs/h efficiency, reliable adhesion with beautiful results, auto fault alarms, and easy operation for superior cylindrical cell insulation in battery production.

Information

Function Features

1.The pasting effectis good,the standard is beautiful,anditis not easy to fall off.

2.Equipment failure alarm, clear fault according toprompt.

3.The padding efficiency is high and can be attached to4000 cores perhour.

Explain

Work mode stepper motor aeration. Surface mat material, highland barley paper or pvc material. The maximum diameter ofthe rolls is 350mm, and the inner diameter of the roll core is 72-75mm. The core hopper can be put into 400 cores at a time.and can be put in segments.

Scope of application

It is suitable for cylindrical 18650/21700/26650 electric core positive electrode or negative pole to automatically attach highland barley paper mat or PVC material.

Technical Parameter
