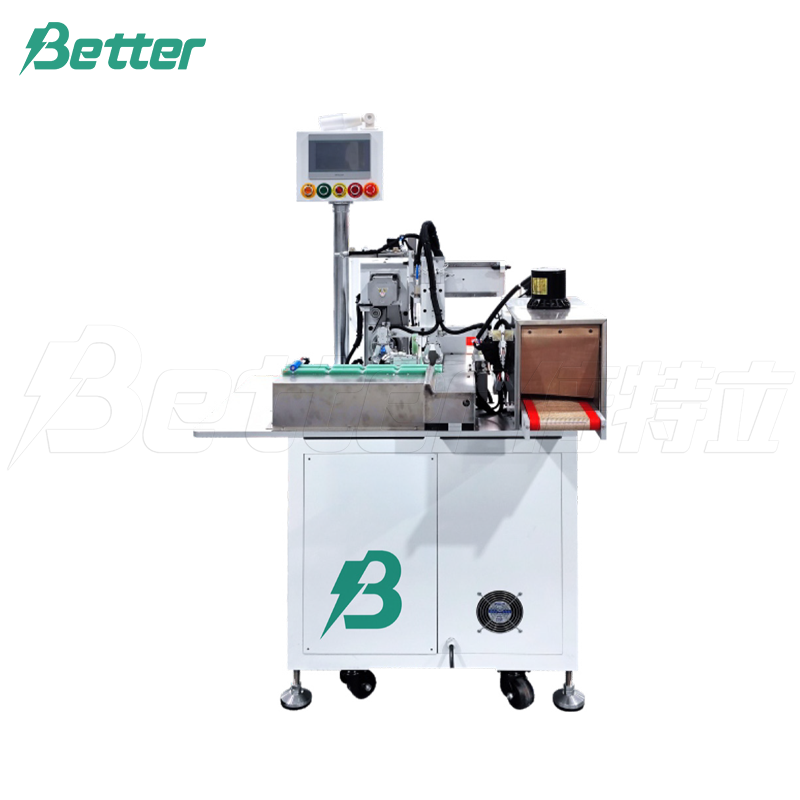

18650 Single jacket heat shrink machine
18650 Single Jacket Heat Shrink Machine. Automates precise film sleeving and shrinking for batteries with wires or BMS plates at 1300+pcs/h. Features one-operator loading, adjustable length control, and PLC+HMI for reliable, labor-saving efficiency in high-volume battery production.
- Information
Function Description
It is designed for automatically sleeving and shrinking film onto individual batteries with wires or BMS. The entire process requires only one operator for loading, while the machine handles film sleeving, heat shrinking, and discharging automatically.
Performance characteristics
1.Suitable for automatic coating of 18650 single wire or protective plate.
2.Humanized operation, high film delivery accuracy, and adjustable length.
Technical Parameter
Model：WPM-200
External dimensions：1000*1200*1700mm
Production efficiency：1300+PCS/hr
Using air pressure：0.4-0.6Mpa
Input power supply：AC220V, 50/60Hz
Equipment power：3KW
Control system：PLC+HMI
Overall weight：150KG
