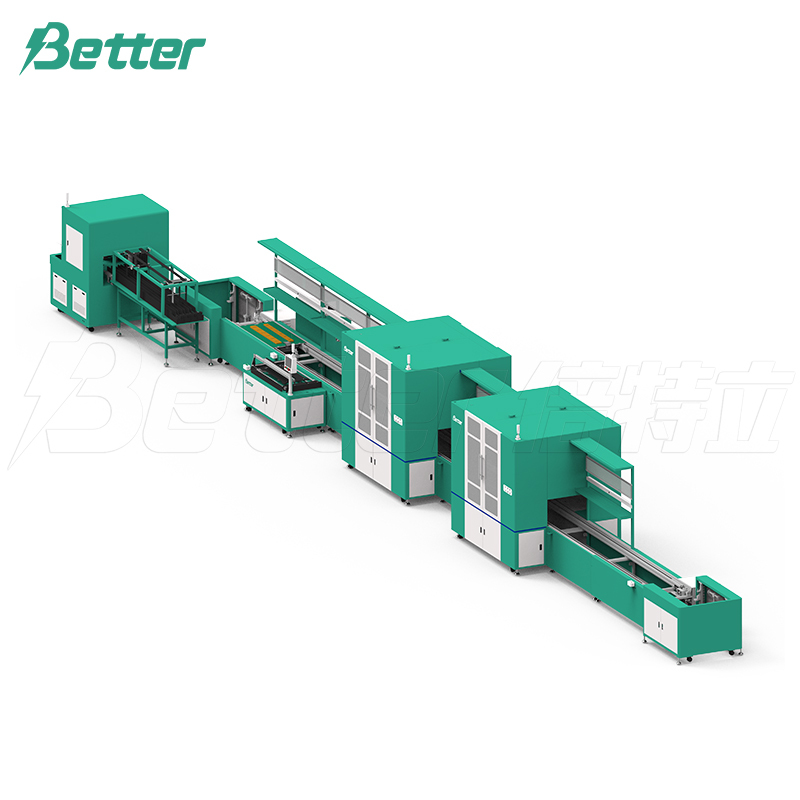

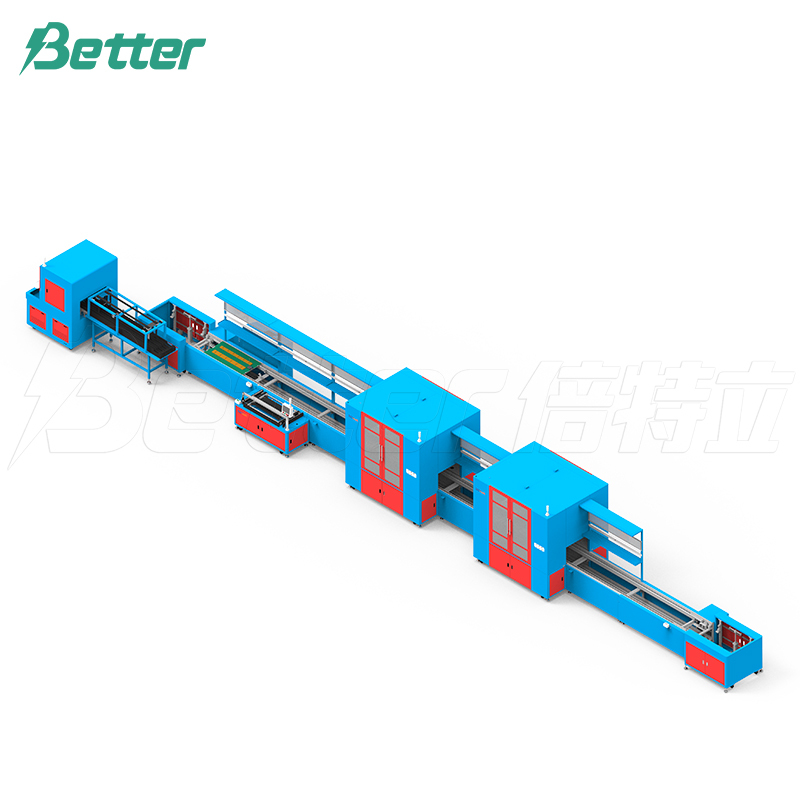

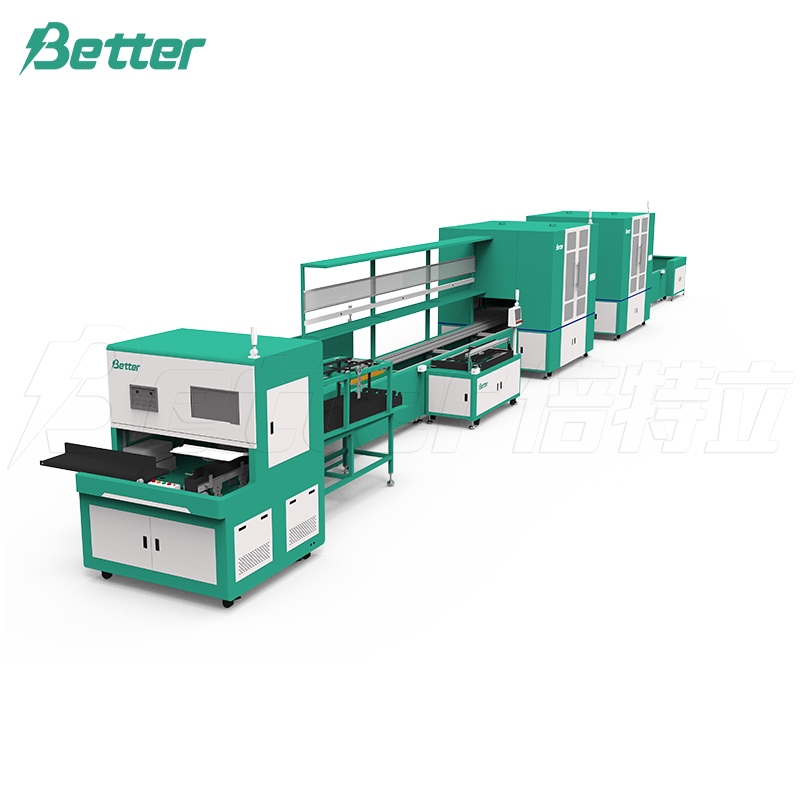

Automatic Assembly Line for Prismatic Cells Battery Packs
The line mainly realizes the whole line production process of square shell battery pack, with a total length of 16 meters, Production pass rate is ≥98%, the whole line operation rate is ≥98%. It has the features of strong adaptability, high flexibility, high production efficiency, high automation and intelligence.
- BETTER
- CHINA
- 15-45 days
- Information
- Video
Technical note
1.The line mainly realizes the whole line production process of square shell battery pack, with a total length of 16 meters, and the whole line is composed of the following equipment;
2.Cell feeding, battery pack bracket assembly, battery pack sheet welding, BMS circuit board soldering, battery pack finished product testing and other stations
3.The whole line of equipment can be linked or used stand-alone, the interface is simple and clear, easy to operate, easy to maintain, each equipment has an independent control system and display screen.
Technical parameters
Air source air pressure | 0.5-0.6 Mpa |
Supply voltage | 220V, 50Hz |
Area-to-load ratio | ≤500kg/㎡ |
Ambient temperature | 5℃-50℃ |
Humidity | 20%-90% |
Equipment operating rate | ≥98% |
Product pass rate | ≥98% |
External dimensions | 16(L)x2(W)x1.9(H)m (Final dimensions apply) |
Conveyor-to-ground height | 900mm±50mm |
Suitable for cell type | Prismatic cells |
Process

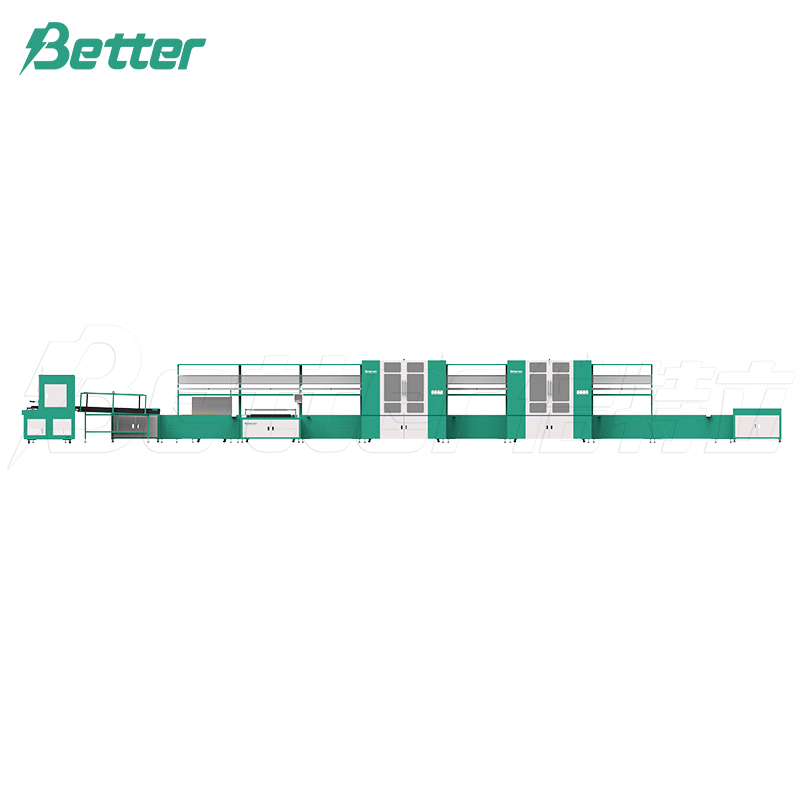

External dimensions
Full line parts brand

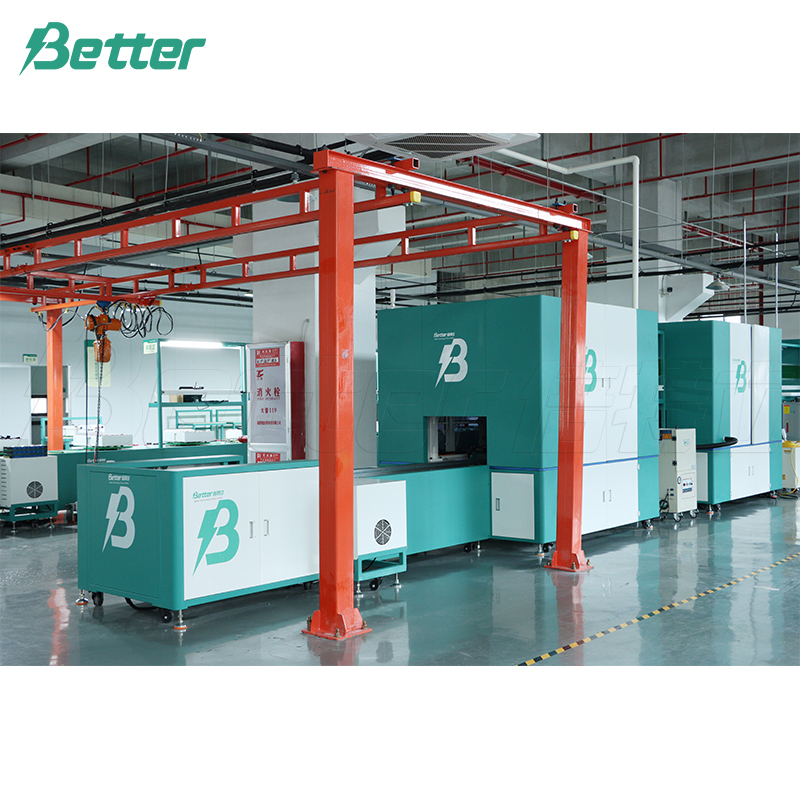

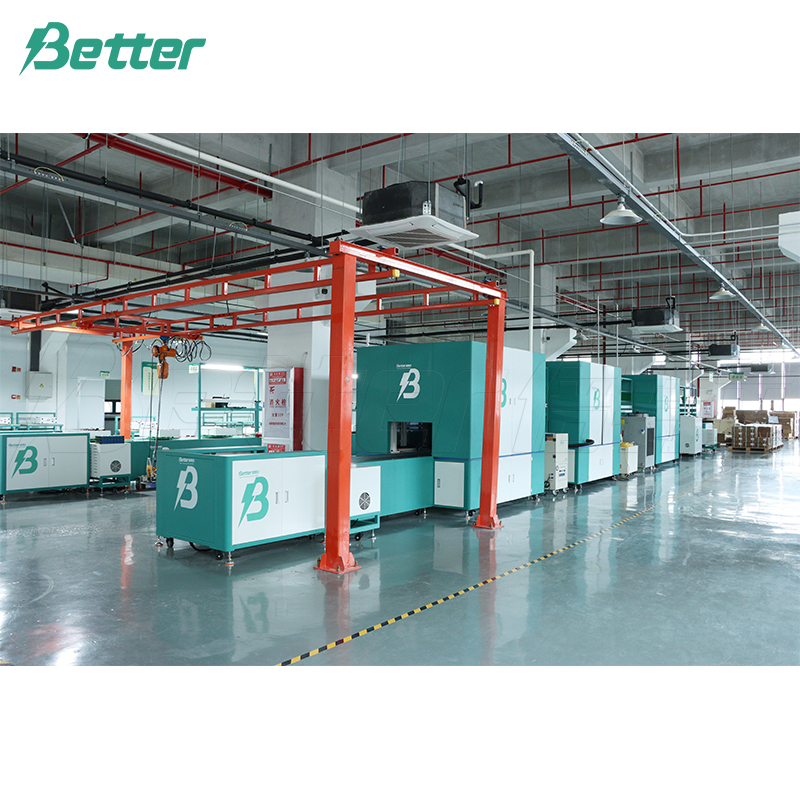

Sample display
