512 channel battery divider cabinet

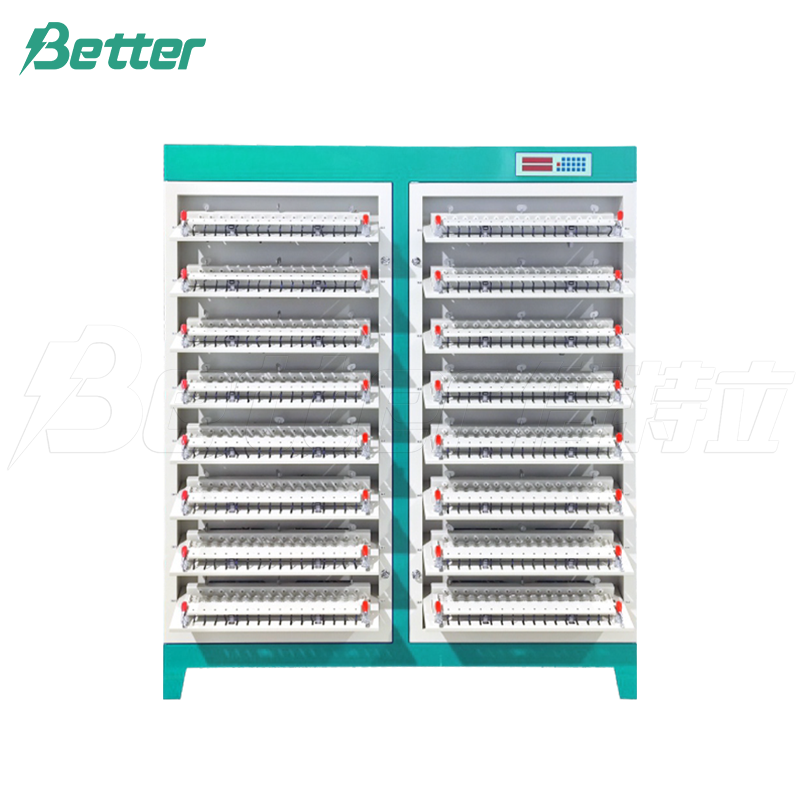

512-Channel Battery Divider Cabinet for precise formation and testing. Delivers high-accuracy measurements (0.1% FS), independent channels, fast sampling, real-time monitoring, and modular design for reliable, efficient battery grading with superior data protection.
- Information
Function Features
Adopting modular manufacturing, it has strong universality and easy maintenance.
Adopting the four line method for measurement improving testing accuracy.
Each battery channel has a completely independent constant current and voltage source, forming a self-contained circuit that does not affect each other.
The equipment adopts a centralized control method.
The sampling speed is fast, and the inspection time for the entire cabinet is ≤ 8 seconds.
Powerful WINDOWS software, user-friendly human-machine interface, and simple operation.
The master PC can configure up to 64 steps and 256 cycles. Each formation step can be selected from four modes: constant current charge, constant voltage charge, constant current discharge, or rest.
Capable of real-time drawing of dynamic curves for each battery's formation and capacity division process, including voltage/time curves, current/time curves, capacity/time curves, energy/time curves, capacity/voltage curves, and other functional menus.
Using LED indicator lights to indicate the working status of the battery.
Communication method: TCP/IP
Each master computer can monitor up to 22 devices.
Equipped with data power-off protection function, it can continue to operate upon power restoration.
The slave computer can work offline for a long time.
Technical Parameter
Number of device channels: 512 channels
Current range: 5 ~ 3000 mA
Current measurement accuracy: 0.1% FS
Current resolution: 1mA
Voltage measurement range: 20 ~ 4950mV
Voltage discharge range: 2000 ~ 4500mV
Voltage measurement accuracy: 0.1% FS
Voltage resolution: 0.1mV
Communication methods: TCP/IP
Working power supply: Three phase AC380V±5% 50Hz
