Dimension Measuring Machine

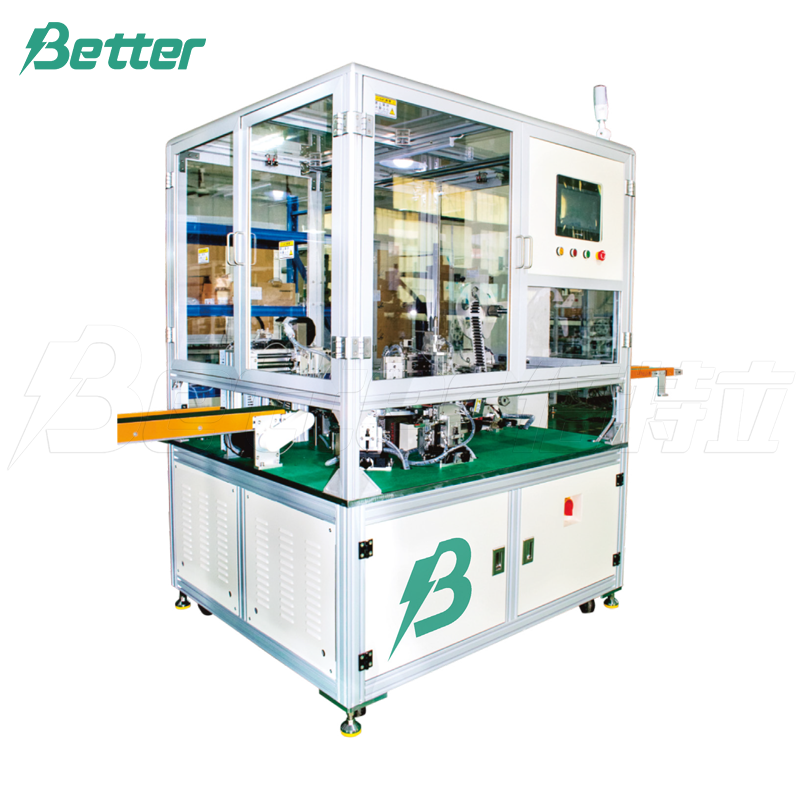

Dimension Measuring Machine for polymer batteries. Automates precise L/W/T measurement (±0.02mm accuracy) at ≥1000pcs/h, with dual workstations, auto defect sorting, anti-static protection, and user-friendly operation for efficient, reliable quality control.
- Information
Introduction of use
Designed for measuring external dimensions (L*W*T) of polymer batteries, with defective battery sorting function. Dual workstations for measuring battery thickness (T).
Technological process
Cell feeding & positioning
Width measuring
Defective cell sorting
Thickness measuring
Length measuring
Dual-workstation thickness measuring
Sorting & discharge (scanning & data uploading-optional)
Technical Parameter
Battery dimensions：L:40-120 W:35-90 T:3-8
Dimension measuring accuracy：±0.02
Air source pressure：0.5MPa
Total power：2KW
Ambient temp.：0-50℃
Power supply voltage：220V 50Hz
Production capacity：≥1000PCS/H
Machine dimensions L*W*H (mm)：1400*1200*1900mm
Functional characteristics
Length & width measuring controlled by precise pneumatic pressure
Auto sorting of scanning code defects and size defects by different channels
High efficiency by dual workstations for thickness measuring
Full-range vacuum monitoring
Anti-static belt protects batteries
User-friendly intuitive operation
