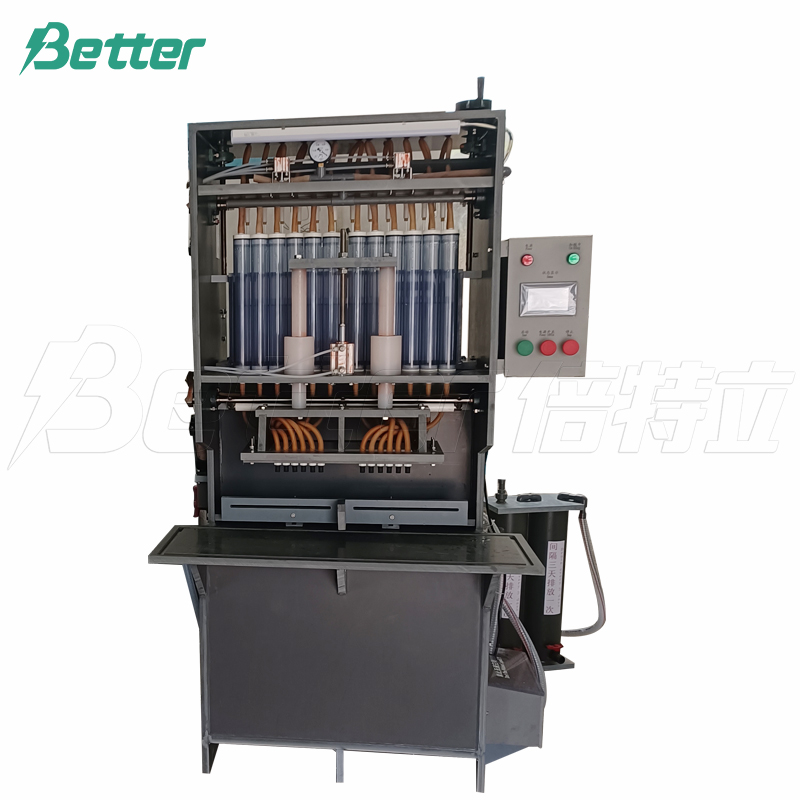

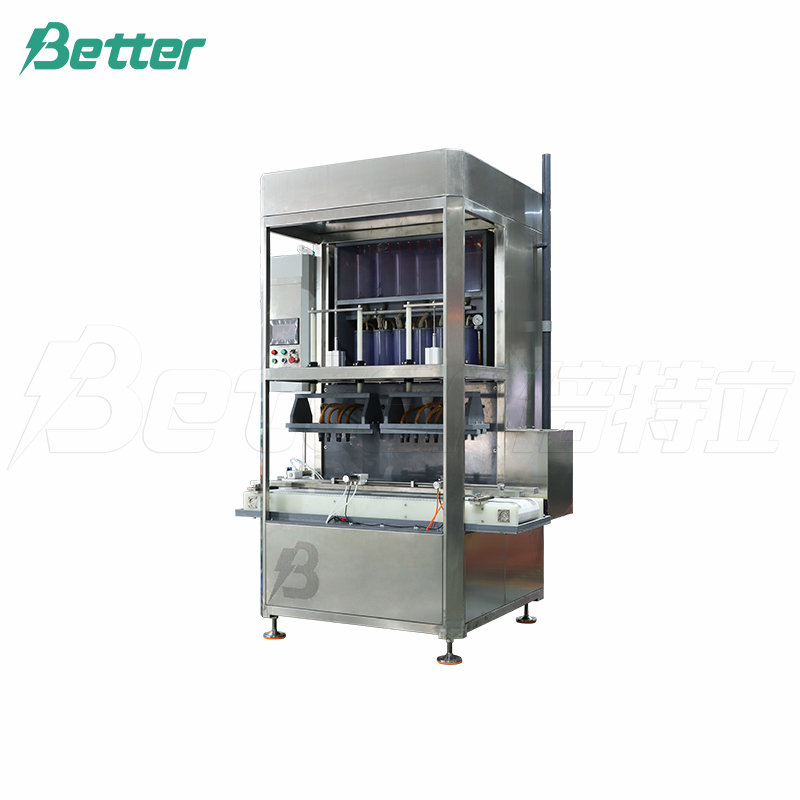

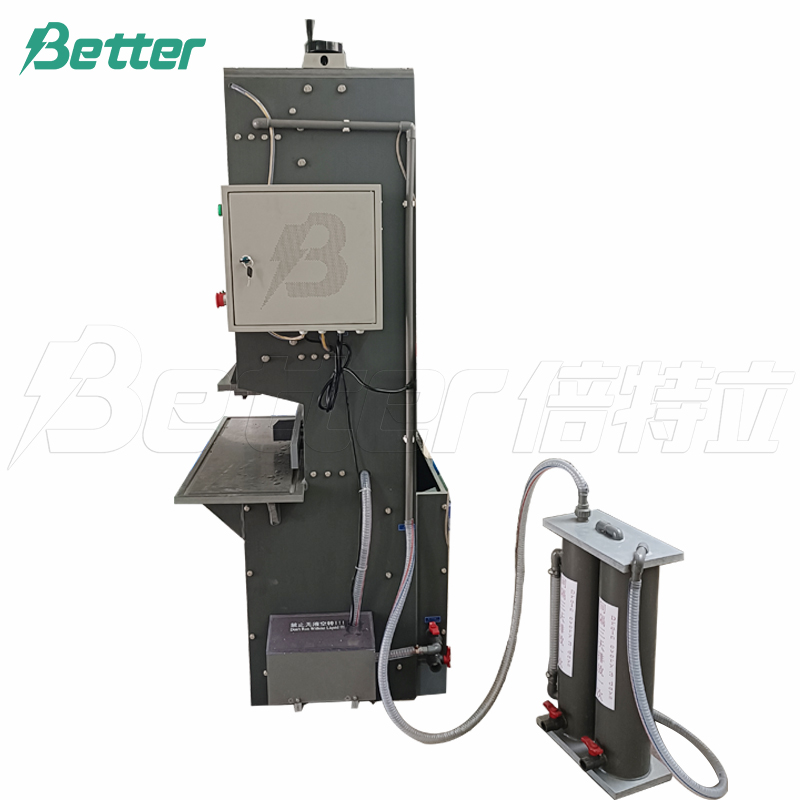

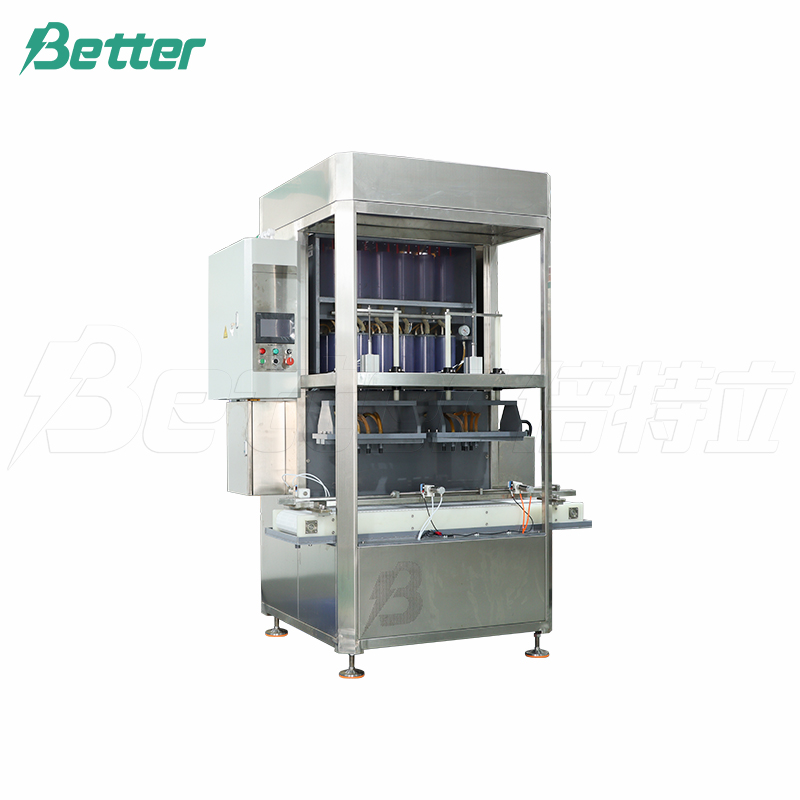

battery Vacuum acid filling machine for lead acid battery

Application

Used for SVRLA Batteries, especially fit for tiny type vacuum volume quantitative acid filling machine (e.g. 4V200ah~1000ah)

Function

1. Automatic and manual working mode.

2. The acid filling amount, times of filling, times of vacuum can be set.

3. All kinds of time parameters can be set according to user's demand;

4. Achieve auto material feeding, locating, dosing, vacuum filling, and discharging.

   Welcome to inquire in detail.


Technical requirement

1. Power supply: 220V/50HZ;

2. Air source supply: 0.4-0.6Mpa;

3. Controlling accuracy for single nozzles acid-filling: ≤±0.3%;

4. 16pcs nozzles acid-filling consistent accuracy: ≤±0.3%;

5. Acid-filling speed: 1500pcs/hour

6. The highest vacuum: - 0.09Mpa;

7. Single nozzle maximum acid-filling quantities: 20ml;

8. Acid-filling method: measuring + vacuum

9. Outside dimension: 750mm*720mm*2000mm;

10. Suitable battery: 250-2000MAH

For more product details, please contact us immediately.
